Kumpulan Senjata Api Terkenal Di Dunia part 5

Jackhammer shotgun (USA)

 Jackhammer Mk3A1.
image source: Jane's Defense Library 2000 CD-ROM



 Jackhammer Mk3A1 - rear view.
image source: Jane's Defense Library 2000 CD-ROM



side and front views drawing from the original patent (1984 -1987). Note that the appearance of the original design differs from the latest Jackhammer Mk3A1 shown above.



 Jackhammer exploded parts diagram from the original patent.

Type: gas-operated, select-fire
Gauge: 12
Length: 787 mm
Barrel length: 525 mm.
Weight unloaded : 4.57 kg
Capacity : 10 rounds in removable revolver-type drum magazine
Rate of fire: 240 rounds per minute

Franchi SPAS-15 (Italy)

SPAS-15.



Type: Selective semi-auto (Gas operated, rotating bolt) or manual pump action
Gauge: 12
Chamber: 70mm (2 1/2").
Barrel length: 450 mm
Overall length: 1000 mm (750mm with butt folded)
Weight: 3.9 kg empty
Magazine: 6 rounds detachable box

USAS-12 shotgun (USA / South Korea)

 USAS-12 with 20 rounds drum magazine.

 USAS-12 with accessories and magazines.

Type: gas operated semi-auto or selective fired
Gauge: 12 (2 3/4 in shells - 70 mm chamber )
Length: 960 mm
Barrel length: 460 mm
Weight 5.5 kg empty, 6.2kg loaded with 10 rounds
Capacity: 10 rounds box or 20 rounds drum detachable magazines

RPD (USSR)

RPD.



Type 56 LMG - a Chinese-made RPD copy.
 Image courtesy of



 RPD belt drum with empty belt and a carrying bag.

Caliber  7,62x39 mm
Weigth 7,4 kg empty, on integral bipod
Length 1037 mm
Length of barrel 520 mm
Feeding belt 100 rounds in drum-like box
Rate of fire 650 rounds per minute
Muzzle velocity 735 m/s

Kalashnikov RPK light machine gun (USSR/Russia)

  Kalashnikov RPK light machine gun with 75-round drum magazine.



  Kalashnikov RPK light machine gun with 40-round box magazine.



 Kalashnikov RPKS light machine gunwith butt and bipod folded.



 Current production 7,62x39 RPKM light machine gun.

Caliber 7,62x39 mm
Weight 4,8 kg empty
Length 1040 mm
Length of barrel 590 mm
Feeding box magazine 40 rounds, or drum 75 rounds
Rate of fire 600 rounds per minute

M60 M60E3 M60E4 machine gun (USA)

 The .30-06 T44 experimental machine gun, which combined design of FG 42 rifle and feed system of MG 42 machine gun. The T44 served as a first step in development of M60 machine gun.



 M60 machine gun on integral bipod (note how gas cylinder is safe-wired to protect it from self-disassemblying).



 M60 machine gun on infantry tripod.



 M60E3 light machine gun.

 US Navy SEAL fires M60E3machine gun.



 M60E4 / Mk.43 mod.1 machine gun (note Picatinny rails on receiver cover and forend), and removable front grip.

	M60	M60E3	M60E4
Caliber	7.62x51 NATO
Weight, kg	10.4 (with bipod) + 6.8 (M122tripod)	8.5 (with bipod)	10.5 (long barrel) 10.2 (short barrel)  9.9(assault barrel)
Overall length, mm	1,067	1,077	1,066 (long barrel) 939(short barrel) 965(assault barrel)
Barrel length, mm	560	558	560 (long) 441 (short) 423(assault)
Cyclic rate of fire, rounds perminute	550	550	550
Feed and capacity	Belt, 100 or 200 rounds



M134 and GAU-2/A 'Minigun' Gatling machine gun (USA)

General Electric M134 Minigun machine gun of Vietnam war (late 1960s) era, on pedestal mount.



 Dillon Aero M134D Minigun of current manufacture, with manual control unit and feed chute.
Image: Dillon Aero



M134D Minigun of current manufacture, mounted on the roof of the military car.
Image: Dillon Aero



M134D Minigun of current manufacture, on Naval pedestal mount, with ammunition container.
Image: Dillon Aero



M134 Minigun on infantry type tripod, as often seen on civilian entertainment events such as Knob Creek machine gun shot in USA.



Data for M134D Minigun

Caliber	7.62x51 NATO
Weight	24...30 kg gun with motor and feeder/delinker, less ammunition container and power source
Length	801 mm
Barrel length	559 mm
Feed	belt in 1500, 3000 or 4500 round containers
Rate of fire	3000 or 4000 rounds per minute, fixed

Kumpulan Senjata Api Terkenal Di Dunia part 4

FN P90 personal defense weapon / submachine gun (Belgium)

FN P90 personal defense weapon / submachine gun in basic configuration, left side.



FN P90 personal defense weapon / submachine gun in basic configuration, right side.



FN P90 TR (triple rail version) personal defense weapon / submachine gun, with installed accessories including optical sight on top rail, flashlight on left rail, and silencer on the barrel.



FN PS90 - a civilian semi-automatic only version of P90 with long barrel.



Bottom view on the filed FN P90 magazine, showing position of the stored cartridges and cartridge in feed position.



FN P90 partially disassembled.

Characteristics

Caliber: 5.7x28mm SS190
Weight: 2.54 kg empty; 3 kg loaded with magazine with 50 rounds
Length: 500 mm
Barrel length: 263 mm
Rate of fire: 900 rounds per minute
Magazine capacity: 50 rounds
Effective range: 200 meters

Steyr TMP (Austria)

Steyr TMP.



Characteristics

Caliber: 9x19mm Luger/Parabellum
Weight: 1,3 kg empty
Length: 282 mm
Rate of fire: 800-900 rounds per minute
Magazine capacity: 15 or 30 rounds

Heckler und Koch MP-5 (Germany)

 HK MP-54, or HK 54 - a prototype submachine gun (1965). Earlier MP-5A1 adopted by German police and Border Guard looked the same. Note that the sights and the muzzle are different from the latter models.



HK MP-5A2 with fixed stock and plastic S-E-F trigger group.

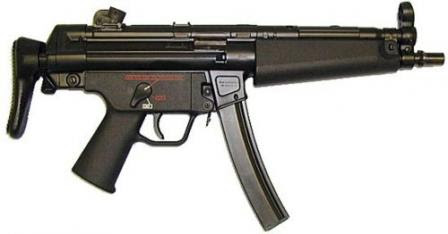

 HK MP-5A3 with retractable buttstock. Earlier model with checkered handguard and a stamped steel S-E-F (in fact, S-1-A) trigger group.



HK MP-5SD3. A silenced version with integral silencer and retractable stock ofA3 version. Early type stamped steel trigger group.



 HK MP-5N. Modern version developed for US Navy. Features plastic trigger group of latest design, with ambidextrous selector lever and "icon"markings. Barrel is threaded to accept US-made detachable silencers, in addition to HK standard three-lug mounts. Retractable buttstock of A3 configuration.



Visual difference between trigger units:
left -earliest type stamped steel with plastic grip (converted from semi-auto only civilian gun HK 94, with American markings on selector);
middle - early type all-plastic with S-E-F markings;
right - most modern all-plastic design of "A4" variation,with additional 3-rounds burst facility and icon markings.



HK MP-5 field-stripped. Note that both types of stocks are shown - fixed A2 typeand retractable A3 type.



click here for an exploded view of the MP5 (65Kb JPEG)



Characteristics



	MP-5A2	MP-5A3
Caliber	9x19mm Parabellum (also .40S&W and 10mm Auto)
Weight, empty	2.54 kg	2.88 kg
Length	680 mm	490 / 660 mm
Barrel length	225 mm
Rate of fire	800 rounds per minute
Magazines	15 and 30 rounds

Heckler und Koch MP-5k (Germany)

  HK MP-5K - original variant, with "S-E-F" trigger unit and the standard 30-rounds MP-5 magazine.



  HK MP-5KA4 - the most modern variant with ambidextrous, 4-position selector trigger unit and short,15-rounds magazine.



  HK MP-5K-PDW - a "Personal Defense Weapon", with proprietary side-folding buttstock and a three-lug muzzle that can accept quick-detachable MP-5 silencers.



 MP5K in the special carrying case.



Click here for the explode view of the MP5K (63Kb JPEG)



Characteristics



Caliber: 9x19mm Luger/Para
Weight: 2 kg without magazine
Length (stock closed/open): 325 mm
Barrel length: 115 mm
Rate of fire: 900 rounds per minute
Magazine capacity: 15 or 30 rounds
Effective range: about 25 meters

Heckler und Koch UMP (Germany)

 HK UMP-45.

 HK UMP-40 with optional equipment: red-dot sight, tactical frontgrip and flashlight.

 HK UMP-9 (note curved magazine).

Characteristics

Caliber: .45ACP, .40SW and 9x19mm Luger/Para
Weight: 2.1 - 2.2 kg empty
Lenght (stock closed/open): 450 / 600 mm
Barrel lenght: 200 mm
Rate of fire: 600 - 700 rounds per minute
Magazine capacity: 10, 25, 30 rounds
Effective range: 100 meters

UZI / Mini UZI / Micro UZI submachine gun (Israel)

 Uzi submachine gun with metallic buttstock in opened position.



 Uzi submachine gun with metallic buttstock in folded position.



 Uzi submachine gun with fixed (detachable) wooden buttstock.



 Mini-Uzi submachine gun with shoulder stock folded.



 Mini-Uzi submachine gun with shoulder stock opened.



 Micro-Uzi submachine gun with shoulder stock opened.



 Micro-Uzi submachine gun with shoulder stock folded.

Characteristics

	UZI	Mini UZI	Micro UZI
Caliber	9x19mm Luger/Para	9x19mm Luger/Para	9x19mm Luger/Para
Weight, kg	3,7	2,7	1,5
Length, mm (stock closed / open)	470 / 650	360 / 600	250 / 460
Barrel length, mm	400	197	117
Rate of fire, rounds/min	600	950	1250
Magazine capacity, rounds	25 , 32	20, 25, 32	20
Effective range, meters	200	100	30



Ingram MAC Model 10 / M10 and Model 11 / M11 submachine guns (USA)

Ingram M10 in .45ACP caliber, as made by MAC, with stock extended.



 Ingram M10 in 9x19mm caliber, as made by MAC, with stock retracted.



 Ingram M11 in 9mm Short, with installed silencer.



Ingram M11 in 9mm Short (9x17, .380ACP) caliber, as made by RPB Industries, with 16-round magazine.



 Ingram M10 in "carbine version" with extended barrel and modified shoulder stock.



 Cobray M11 "pistol" in 9x19mm - one of semi-automatic clones made to Ingram M10 pattern; note longer receiver and lack of fire mode selector switch.



Characteristics

	Ingram M10	Ingram M11
Caliber	.45ACP and 9x19 Luger	9x17 Browning Short (.380ACP)
Weight	2,84 kg empty	1,59 kg empty
Length	269 / 548 mm	222 / 460 mm
Barrel length	146 mm	129 mm
Rate of fire	1145 (.45) / 1090 (9mm) rounds per minute	1200 rounds per minute
Magazine capacity	30 (.45) or 32 (9mm) rounds	16 or 32 rounds
Effective range	50-70 meters	30-50 meters



TDI Kriss Super V™ submachine gun (USA)

TDI Kriss Super V™submachine gun, prototype.
Image:Transformational Defense Industries, Inc. (TDI)



TDI Kriss Super V™submachine gun, prototype, disassembled into basic components.
Image: Transformational Defense Industries, Inc.(TDI)



Prototype Kriss Super V™submachine gun is being fired by Tom Maffin of TDI.
Image: Transformational Defense Industries, Inc.(TDI)



Diagram from US patentapplication which depicts the basic Super V™ action of theKriss submachine gun.

Characteristics

Caliber	.45 ACP
Weight, empty	2,18 kg prototype 1,8 - 2,0 kg target for production gun
Length (stock folded / opened)	406 /  635 mm
Barrel length	140 mm
Rate offire	800to 1100 rounds per minute
Magazine capacity	13 rounds (28 roundmagazine is being developed)
Effective range	100 meters
